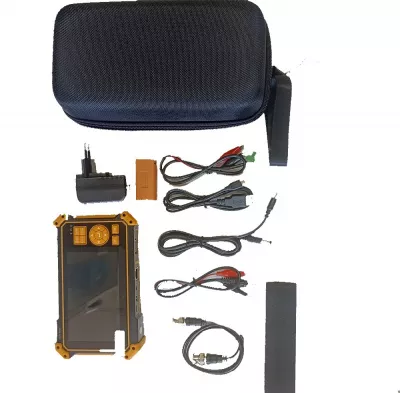

Тестер для видеонаблюдения AVT TEST UNI
Гарантия | 1 год |
Функция PTZ | Да |
Запись на карту памяти | Да |
Аудиовходы | 1 |
Видеовыходы | BNC, HDMI, VGA |
Запись фото | Да |
Запись видео | Да |
Формат | гибридный |
Технология | AHD, CVI, TVI, аналог |
HDMI вход | Да |
Размер дисплея | 5" |
Время работы без подзарядки | 8 ч. |
Температура нижняя | -10 |
Температура верхняя | +60 |
Встроенный аккумулятор | Да |
Особенности
5" цветной дисплей 800*480
Работа с камерами
● 8MP TVI , 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu
● 8MP AHD , 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● 8MP CVI , 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu
● Автоопределение формата камеры .
● Вход VGA до 1920 x 1200P 60FPS, запись фото и видео
● Вход HDMI до 4K 30FPS, запись фото и видео.
● Вход CVBS , PTZ
● DC12V/1A выход питания для камер
● DC 5V 1A выход питания и чтение USB диска
Проверка кабеля:
● Проверка UTP и телефонного кабеля .
Доп функции:
● Медиаплеер
● Яркий фонарик для работы в темноте
● Аудиовход для проверки звукового сигнала.
ХАРАКТЕРИСТИКИ
| Display | New 5 inch TFT-LCD screen, 800*480 resolution |
Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) |
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | ||
HD Coaxial test | 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu | |
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu | ||
8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu | ||
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu * | ||
Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu | ||
HDMI input | 1 channel HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc | |
VGA input | 1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P 60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P 60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P 60FPS | |
Power output | DC12V 1A output | DC12V 1A power output, supply temporarily power for the camera |
DC5V 1A output | DC5V 1A power output, support reading USB disk | |
Cable test | Digital Cable tracer * | Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * ( Optional) |
UTP cable test | Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. | |
Audio test | 1 channel audio signal input, test whether sound normal. | |
Power management | Display DC 12V input & output voltage and power in real time | |
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | |
External power supply | DC 5V 2A | |
Battery | Built-in 3.7V Lithium polymer battery, 5200mAh | |
Rechargeable | After charging 4 hours, normal working time 6.5 hours | |
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc | |
Auto off | 1-30 (mins) | |
Working Temperature | -10℃---+50℃ | |
Working Humidity | 30%-90% | |
Dimension/ Weight | 184mm x 110mm x 41mm / 0.4kg | |
